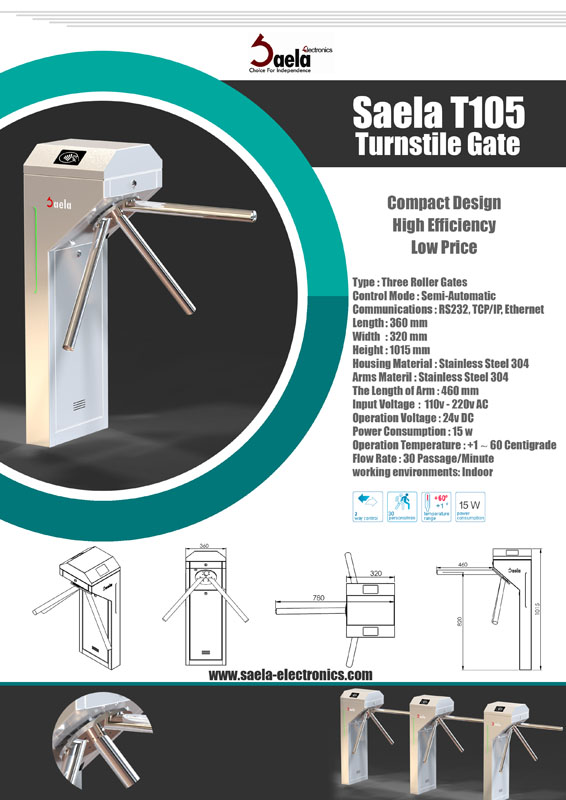

Turnstile gate Saela T105

SAELA T105 Turnstile Gate:


Saela T105 Turnstile gate offer dissuasive automated access control for sites with heavy use. The T105 Turnstile gate is equipped with motorize module. It efficiently guide high-volume throughput. It is widely used in factories, offices, colleges, library and etc.


Features and functions:

  • Made of 304# stainless steel, high anti-corrosion function.
  • CNC stamping and laser drilling process, presenting elegant appearance.
  • Standard interface ensures simple installation and system integration.
  • Direction can be set as single-direction or bi-direction, indicated with LED lights.
  • Counter function available, provide valuable data for business managers.
  • Can be used with variety of credentials: IC/ID cards, bar codes, fingerprints, etc. (Access controller needed)
  • Automatic reset function. Should the user fail to pass within 8 seconds, the system will cancel the authority of the current user automatically.
  • Motorize module can keep the gate in balance when there is external force.
  • The positive action lock also helps in preventing two passage at one time.
  • T105 supports new panel

Product Properties:

Title Details
Type Three Roller Gates
Control Mode Semi-Automatic
Communication Interface RS232, TCP/IP, Ethernet
Length 360 mm
Width 320 mm
Height 1016 mm
Housing Material Stainless Steel 304
Arms Material Stainless Steel 304
The Length of Arm 490 mm
Input Voltage AC 100∼220 v
Operation Voltage DC 24v
Power(Standby) 15 w
Power(Peak) 70 w
Operation Temperature -5∼60 Centigrade
Flow Rate 30 Passage/Minute


Technical Plan:

Technical Plan Gate

Support and Warranty:


All products of SAELA Industrial Group have 2 years warranty.

2 year warranty
