Turnstile gate Saela T104

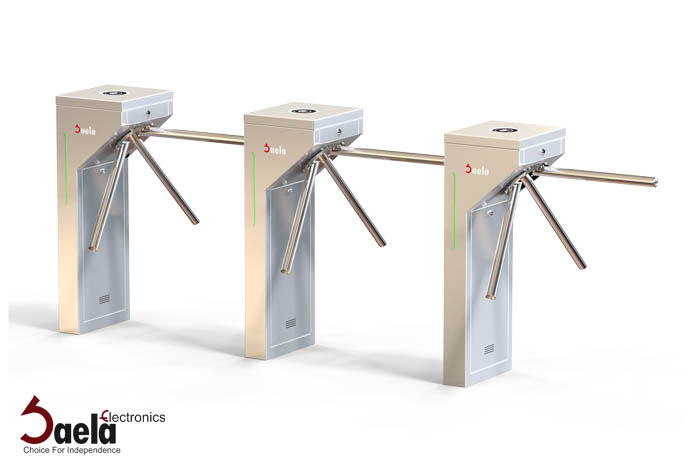

SAELA T104 Turnstile Gate


Saela T104 Turnstile gate offer dissuasive automated access control for sites with heavy use. The T104 Turnstile gate is equipped with motorize module. It efficiently guide high-volume throughput. It is widely used in factories, offices, colleges, library and etc.


Features and functions:

  • Made of 304# stainless steel, high anti-corrosion function.
  • CNC stamping and laser drilling process, presenting elegant appearance.
  • Standard interface ensures simple installation and system integration.
  • Direction can be set as single-direction or bi-direction, indicated with LED lights.
  • Counter function available, provide valuable data for business managers.
  • Can be used with variety of credentials: IC/ID cards, bar codes, fingerprints, etc. (Access controller needed)
  • Automatic reset function. Should the user fail to pass within 8 seconds, the system will cancel the authority of the current user automatically.
  • Motorize module can keep the gate in balance when there is external force.
  • The positive action lock also helps in preventing two passage at one time.
  • T104 supports new panel

Product Properties:

Title Details
Type Three Roller Gates
Control Mode Semi-Automaticc
Communication Interface RS232, TCP/IP, Ethernet
Length 360 mm
Width 320 mm
Height 955 mm
Housing Material Stainless Steel 304
Arms Material Stainless Steel 304
The Length of Arm 490 mm
Input Voltage AC 100∼220 v
Operation Voltage DC 24v
Power(Standby) 15 w
Power(Peak) 70 w
Operation Temperature -5∼60 Centigrade
Flow Rate 30 Passage/Minute

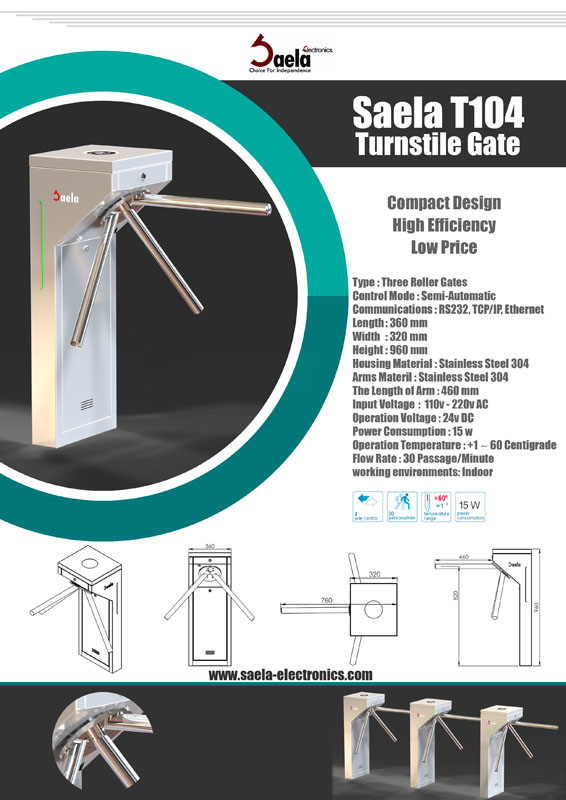

Technical Plan:

Technical Plan Gate

Support and Warranty:


All products of SAELA Industrial Group have 2 years warranty.

2 year warranty
