Turnstile gate Saela T101

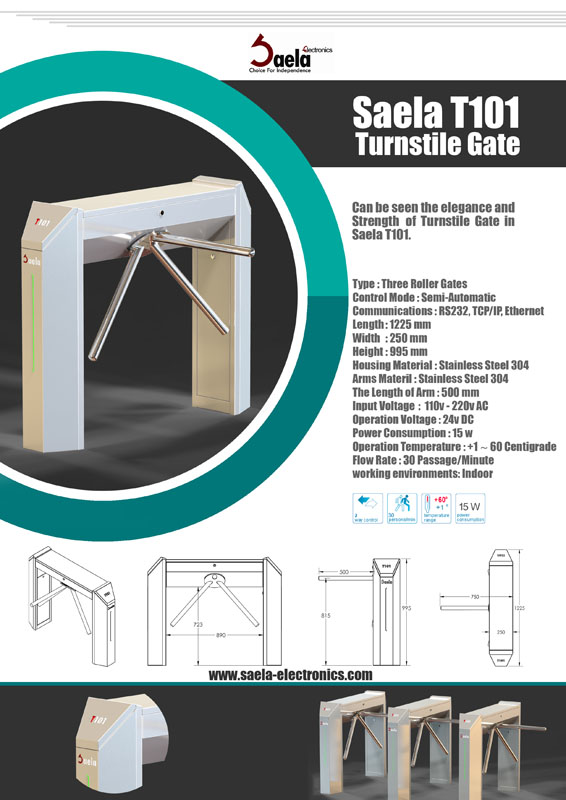

SAELA T101 Turnstile Gate:


Saela T101 turnstile gate has bridge form. It used to control pedestrian flow and monitor attendance. Sometimes bridge type structure is better than other types of turnstile gates and it depends on your position gate. It is widely used in factories, offices, colleges, library and etc.


Features and functions:

  • Made of 304# stainless steel, high anti-corrosion function.
  • CNC stamping and laser drilling process, presenting elegant appearance.
  • Standard interface ensures simple installation and system integration.
  • Direction can be set as single-direction or bi-direction, indicated with LED lights.
  • Counter function available, provide valuable data for business managers.
  • Can be used with variety of credentials: IC/ID cards, bar codes, fingerprints, etc. (Access controller needed)
  • Automatic reset function. Should the user fail to pass within 8 seconds, the system will cancel the authority of the current user automatically.
  • If turnstile gate has been customized with motorize module, it can keep the gate in balance when there is external force.

Product Properties:

Title Details
Type Three Roller Gates
Control Mode Semi-Automatic
Communication Interface RS232, TCP/IP, Ethernet
Length 1225 mm
Width 250 mm
Height 996 mm
Housing Material Stainless Steel 304
Arms Material Stainless Steel 304
The Length of Arm 500 mm
Input Voltage
AC 100∼220 v
Operation Voltage DC 24v
Power(Standby) 15 w
Power(Peak) 70 w
Operation Temperature -5∼60 Centigrade
Flow Rate 30 Passage/Minute


Technical Plan:

Technical Plan Gate

Support and Warranty:


All products of SAELA Industrial Group have 2 years warranty.

2 year warranty
