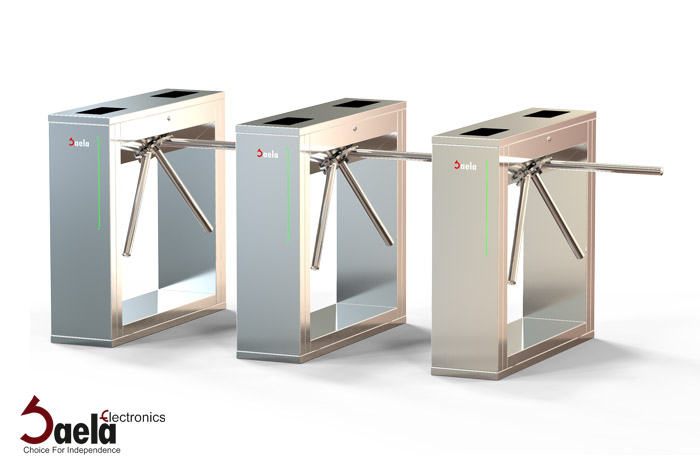

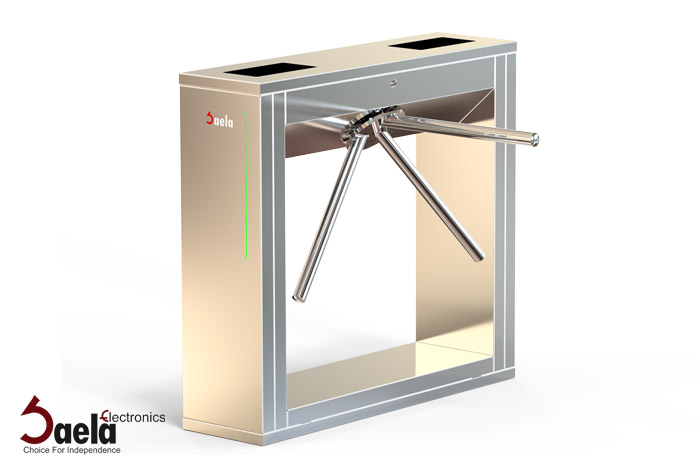

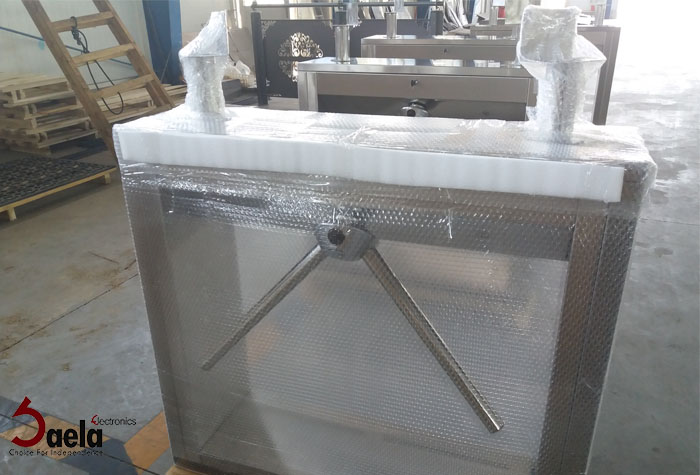

Turnstile gate Saela T100

SAELA T100 Turnstile Gate:


Saela T100 turnstile gate, can be easily to integrate with other read/write devices and systems, can fulfill functions like entrance control, time attendance, pedestrian volume control etc. T100 is suitable for outdoor conditions. It is widely used for applications like university, stadium, organization, gym, amusement parks, bus station, library, factory and etc.


Features and functions:

  • Made of 304# stainless steel, high anti-corrosion function.
  • CNC stamping and laser drilling process, presenting elegant appearance.
  • Standard interface ensures simple installation and system integration.
  • Direction can be set as single-direction or bi-direction, indicated with LED lights.
  • Counter function available, provide valuable data for business managers.

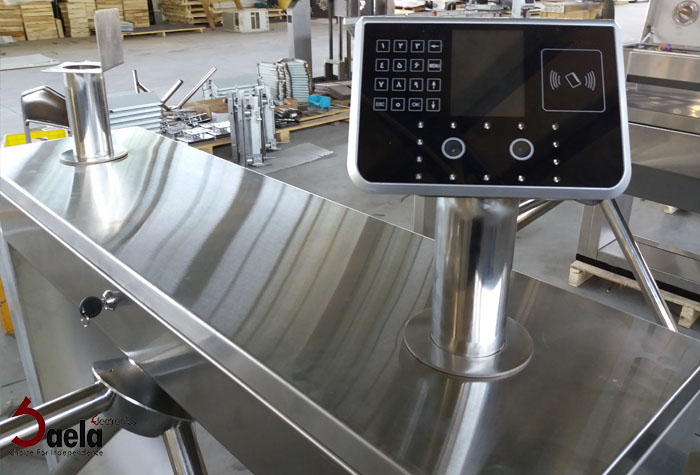

  • Can be used with variety of credentials: IC/ID cards, bar codes, fingerprints, etc. (Access controller needed)
  • Automatic reset function. Should the user fail to pass within 8 seconds, the system will cancel the authority of the current user automatically.
  • If turnstile gate has been customized with motorize module, it can keep the gate in balance when there is external force.

Product Properties:

Title Details
Type Three Roller Gates
Control Mode Semi-Automatic
Communication Interface RS232, TCP/IP, Ethernet
Length 1100 mm
Width 300 mm
Height 1000 mm
Housing Material Stainless Steel 304
Arms Material Stainless Steel 304
The Length of Arm 500 mm
Input Voltage
AC 100∼220 v
Operation Voltage DC 24v
Power(Standby) 15 w
Power(Peak) 70 w
Operation Temperature -5∼60 Centigrade
Flow Rate 30 Passage/Minute


Technical Plan:

Technical Plan Gate

Support and Warranty:


All products of SAELA Industrial Group have 2 years warranty.

2 year warranty
