Speed gate Saela S301

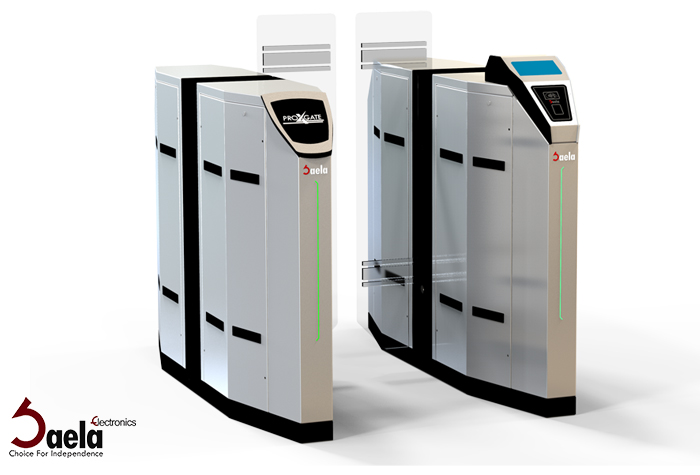

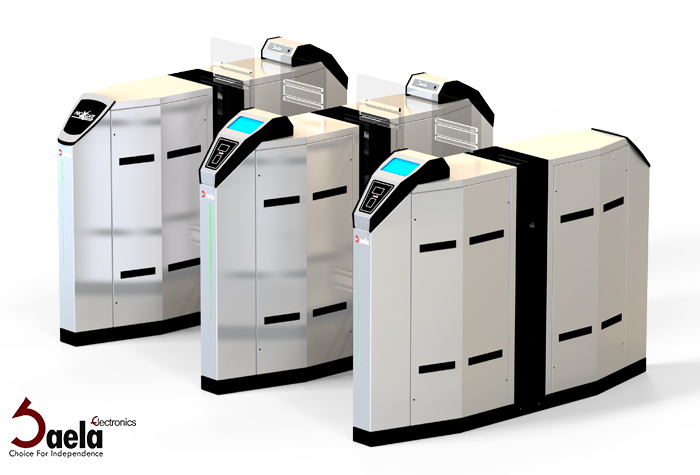

Speed Gate SAELA S301

SAELA access control systems include a range of technical solutions to allow the free flow of authorised people whilst denying entry to unauthorised visitors. We offers access control systems that achieve a balance between a secure and comfortable workplace and a productive environment.


Functions & Features:

- The metal house is shaped by high quality 304 stainless steel, with the trait of firmness, antirust, daintiness, safety, easy cleaning and maintenance.
- Machinery and electrical integration design
- Interface for variety of card reader: such as: IC / ID card readers, bar codes, fingerprints, etc.
- Auto reset function. If the passenger does not pass the way in the valid time, the system will lock up again. The valid passing time is 10 seconds.
- Glass Arms automatically open when power off, and auto-close when power on
- Fault self-checking function, easy for using and maintenance
- Through the interior buttons of the main control panel to set the operational status of equipment
- Infrared anti-clamping function, by entering obstacles while Closing ,glass arms will automatically stop working within the required time with little force.
- Sound & light alarm function, automatic alarm in case of illegal entering
- LED Direction-Indicator
- Interface for passage number counter (optional)
- The machine can be used indoors


Main Specifications:

Glass Barrier Gate
steady precise durable silent
access control
traffic control


Operation:

    • Two directions controlled / One direction controlled
    • LED direction indication
    • Flowing speed:
    • 50 persons / minute in the opening mode.

    30 persons / minute in the closing mode.
  • Illegal invasion sound alarm.
  • Keep open when the power off.

گیت کنترل تردد

Title Details
Type Speed Gate
Control Mode Automatic
Communication Interface RS232, TCP/IP, Ethernet
Length 1500 mm
Width 350mm+600mm+350mm=1300mm
Height 1096 mm
Weight 90+90=180 Kg
Housing Material Stainless Steel 304
Arms Material Tempered Glass
The Length of Any Arm 250 mm
Input Voltage AC 100∼230 v
Operation Voltage DC 24v
Power(Running) 280 w
Operation Temperature 0∼60 Centigrade
Flow Rate 30 Passage/Minute

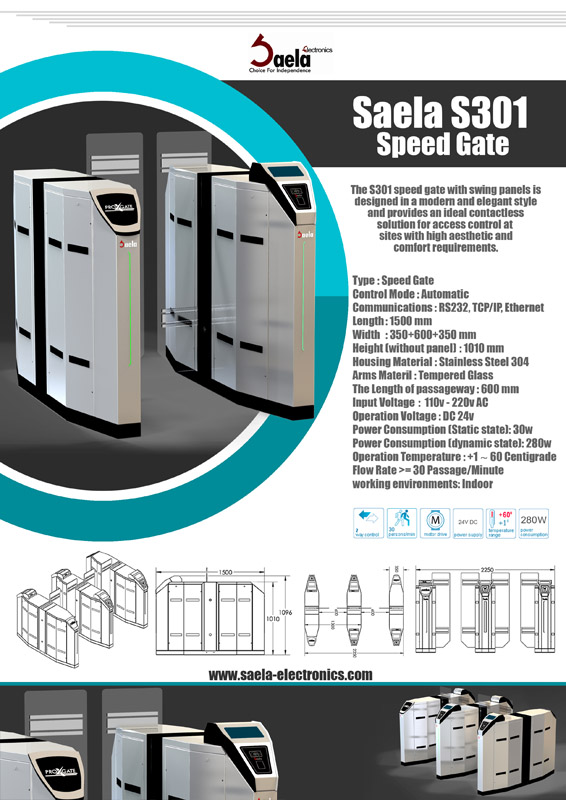

Technical Plan:

Technical plan gate
Technical plan gate


Support and Warranty:


All products of SAELA Industrial Group have 2 years warranty.

2 year warranty

Files:

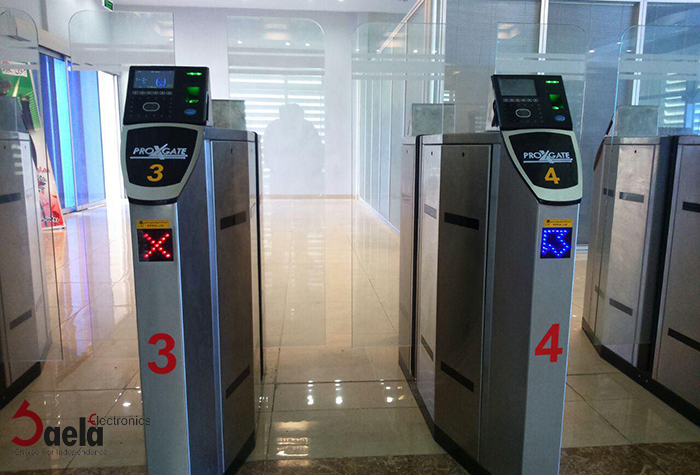

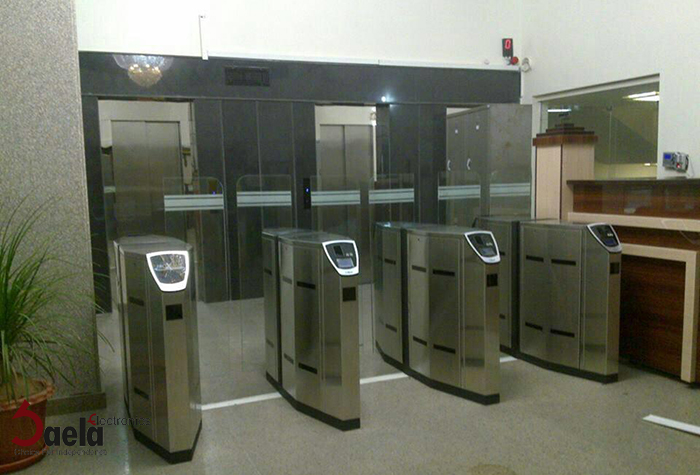

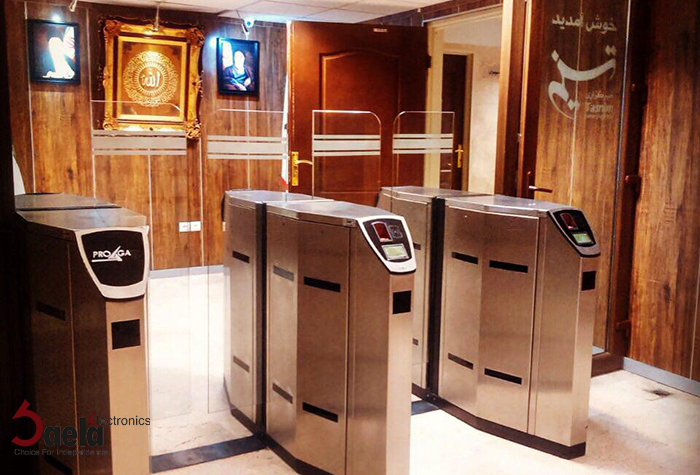

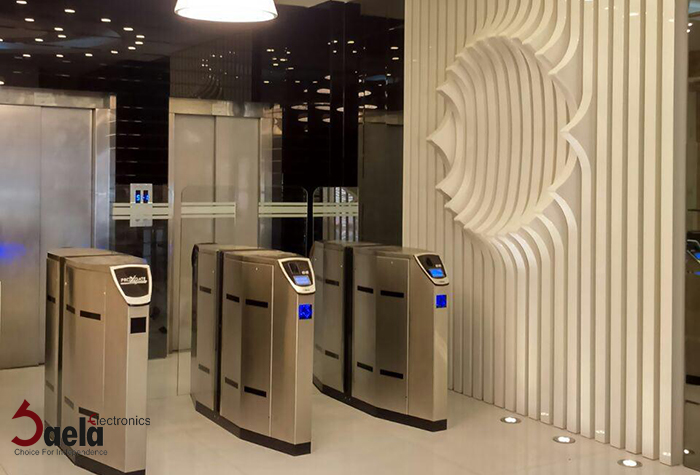

Gallery:
