Full Height Turnstile Gate FH503

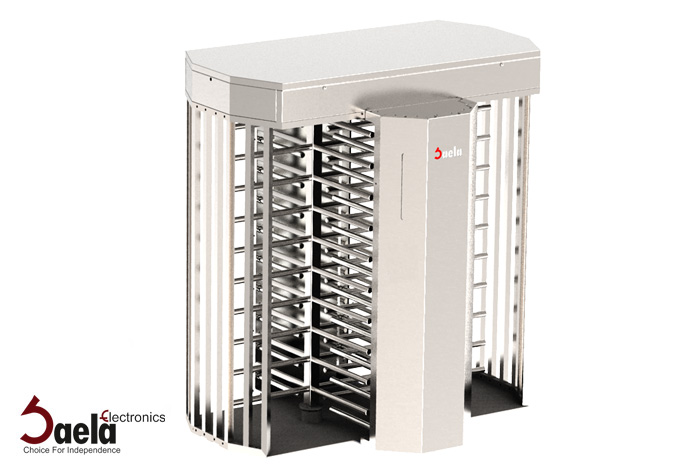

SAELA Full Height Turnstile Gate FH503


The Full Height Turnstile gate FH503 has been designed to provide a secure means of controlling authorised high levels of restricted are as for staff, visitors. A full height turnstile is an excellent deterrent to protect the property from unauthorised individuals..


Features and functions:

  • Made of 304# stainless steel, high anti-corrosion function.
  • CNC stamping and laser drilling process, presenting elegant appearance.
  • Standard interface ensures simple installation and system integration.
  • Direction can be set as single-direction or bi-direction, indicated with LED lights.
  • Counter function available, provide valuable data for business managers.
  • Can be used with variety of credentials: IC/ID cards, bar codes, fingerprints, etc. (Access controller needed)
  • Automatic reset function. Should the user fail to pass within 8 seconds, the system will cancel the authority of the current user automatically.
  • Motorize module can keep the gate in balance when there is external force.
  • The positive action lock also helps in preventing two passage at one time.
  • P900 supports new panel

Product Properties:

Title Details
Type Full Height Turnstile gate
Control Mode Semi-Automatic
Communication Interface RS232, TCP/IP, Ethernet
Length 1400 mm
Installation Width 2200 mm
Height under top channel 2300 mm
Top channel height 200 mm
Housing Material Stainless Steel 304
Arms Material Stainless Steel 304
The Length of Arm 500 mm
Input Voltage
AC 110∼220 v
Operation Voltage DC 24v
Power(Peak) 50 w
Operation Temperature -20∼+50 Centigrade
Flow Rate 16 Passage/Minute
Working environments Indoor/Outdoor


Technical Plan:

Hygiene gate Plan


Support and Warranty:


All products of SAELA Industrial Group have 2 years warranty.

2 year warranty
