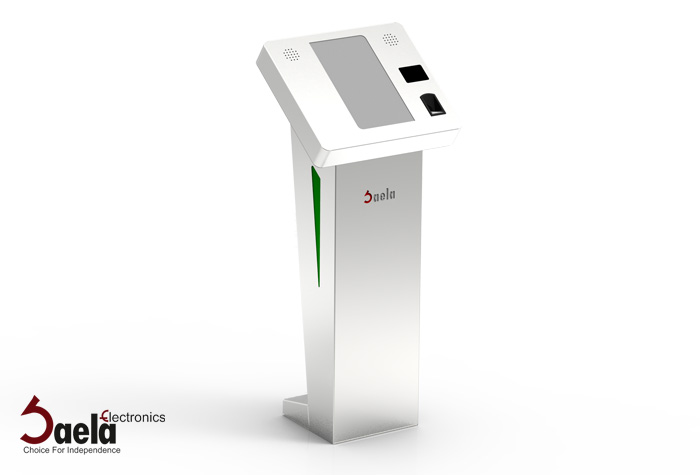

Access Control Panel Saela P901


Saela P901 Access Control Panel offer dissuasive automated access control for sites with heavy use. The P901 Access Control Panel is equipped with motorize module. It efficiently guide high-volume throughput. It is widely used in factories, offices, colleges, library and etc.

Features and functions:

  • Made of 304# stainless steel, high anti-corrosion function.
  • CNC stamping and laser drilling process, presenting elegant appearance.
  • Standard interface ensures simple installation and system integration.
  • Direction can be set as single-direction or bi-direction, indicated with LED lights.
  • Counter function available, provide valuable data for business managers.
  • Can be used with variety of credentials: IC/ID cards, bar codes, fingerprints, etc. (Access controller needed)
  • Automatic reset function. Should the user fail to pass within 8 seconds, the system will cancel the authority of the current user automatically.
  • Motorize module can keep the gate in balance when there is external force.
  • The positive action lock also helps in preventing two passage at one time.
  • P901 supports new panel

Product Properties:

Title Details
Biometric Fingerprint
RF Option 125kHz EM & 13.56Mhz MIFARE, MIFARE Plus, DESfire/EV1, FeliCa, NFC
Max. User (1:1) 100.000
Max. User (1:N) 10.000
Max. Text Log 2.000.000
Max. Image Log 100.000
Interface WiFi, TCP/IP, RS-485, RS-232, USB
Relay 1Relay
SD Card 16GB
CPU 1.33GHz
Memory 2G RAM + 32G ROM
LCD LCD 7" Full color + Touch Screen
Camera 5 MP
Operating Temp -20∼50 Centigrade

Technical Plan:

Hygiene gate Plan

Support and Warranty:

All products of SAELA Industrial Group have 2 years warranty.

2 year warranty
